Providing precision surface and cylindrical grinding services for engineering and manufacturing industries. Using Jones & Shipman grinding equipment and precision inspection tools for working to tight tolerances and high quality finishes.
Machines:

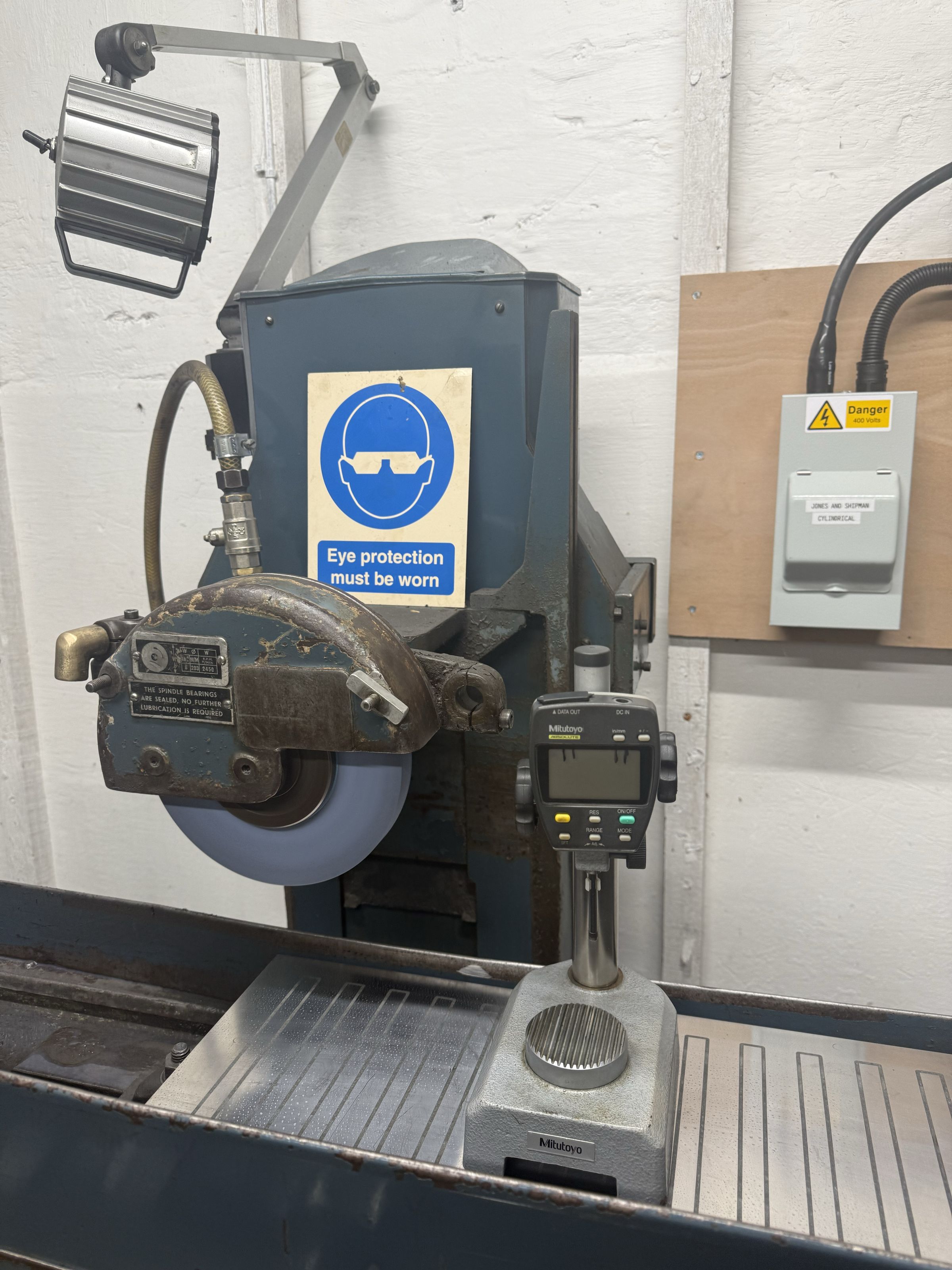

Jones - Shipman Model 1400 Surface Grinder
Table size - 24" x 7"
Maximum Longitudinal Traverse - 25"
Maximum Cross Traverse - 8"
Maximum Vertical Traverse - 11"
Typical Working Tolerance - ±0.005mm

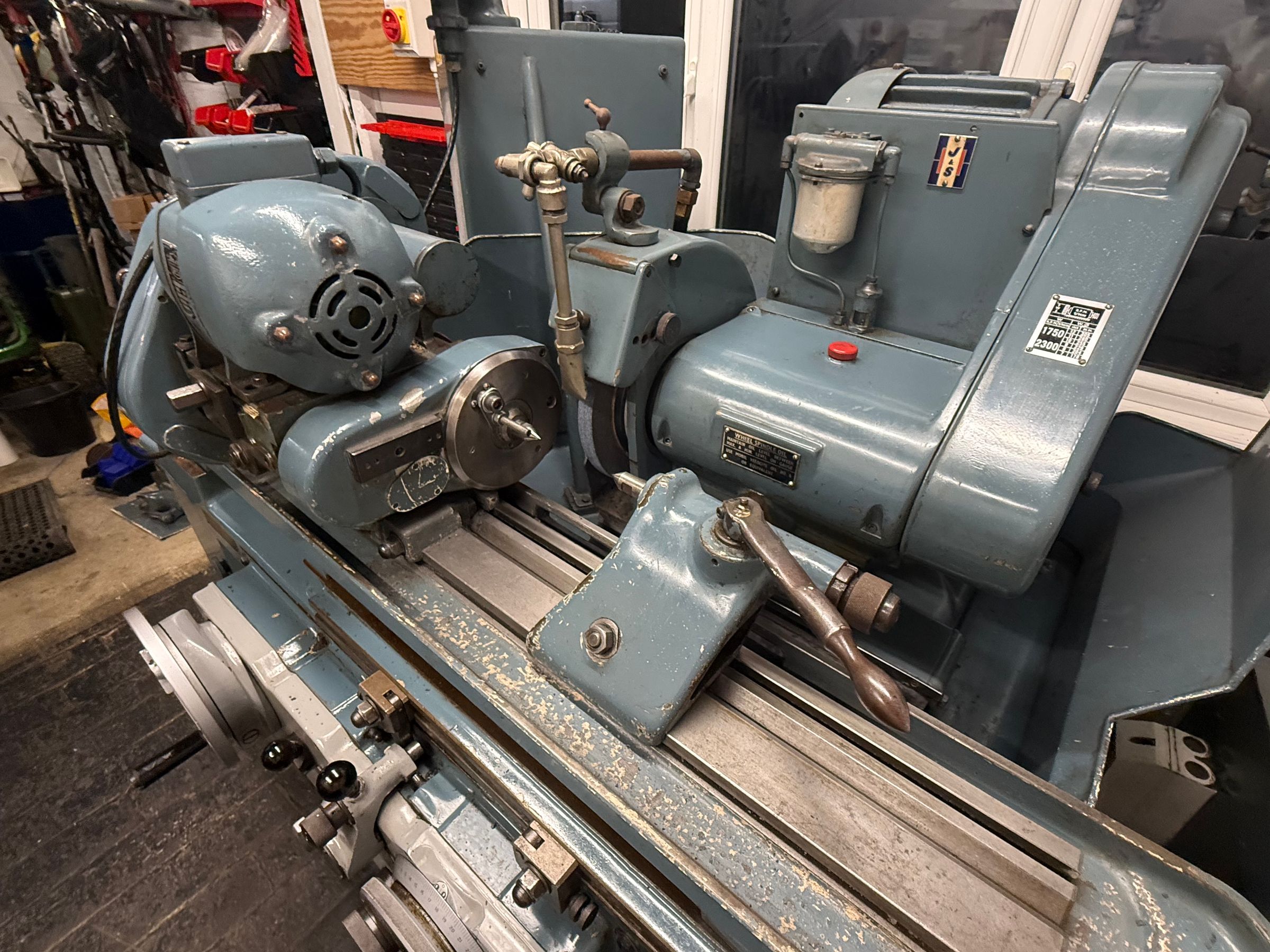

Jones - Shipman Model 1310 Cylindrical Grinder
Maximum workpiece diameter - 8"
Maximum Length Between Centres - 18"
Typical Working Tolerance - ±0.005mm
(subject to component size and specification)
Inspection Tools:

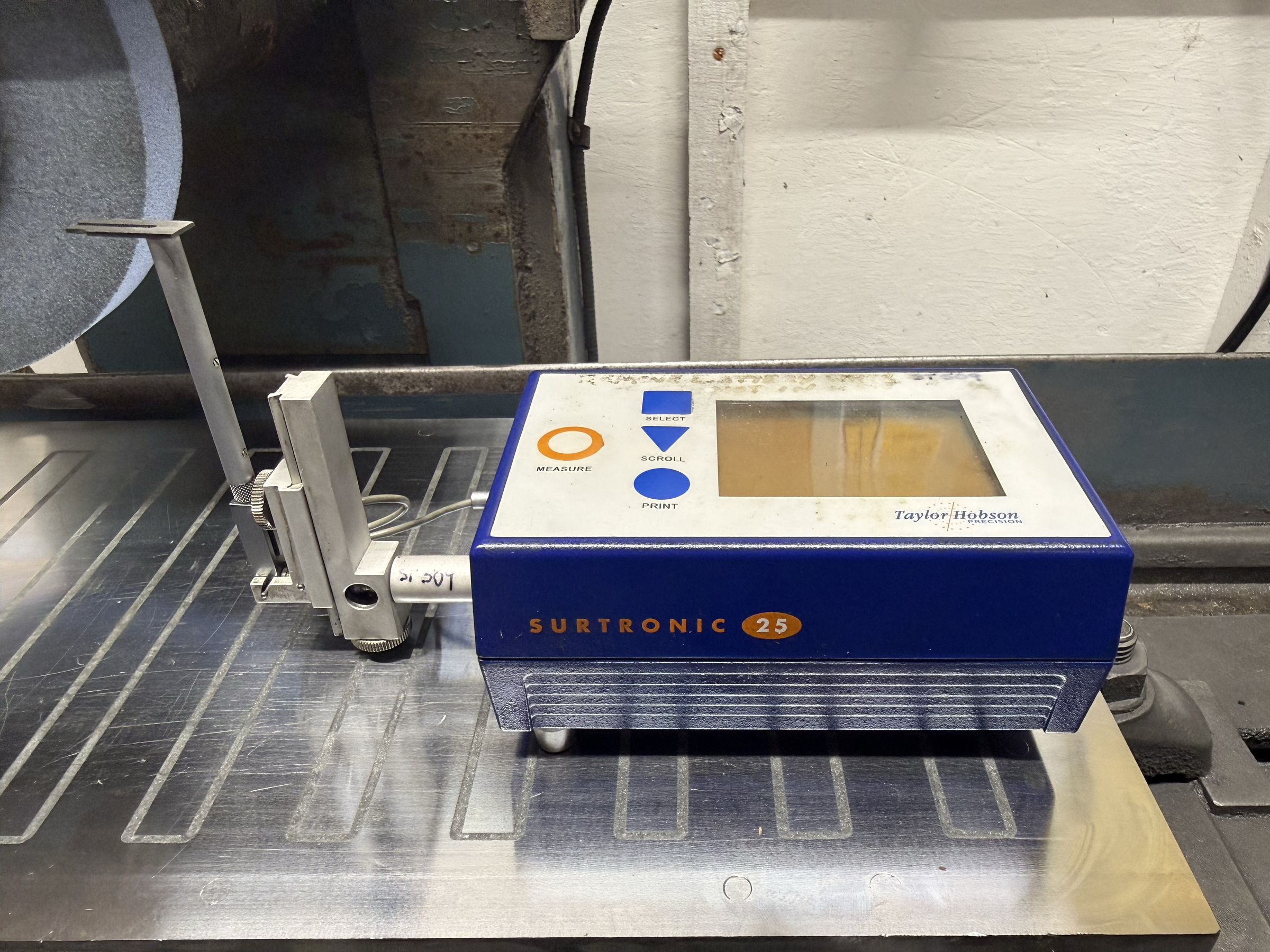

Taylor Hobson Surtronic 25
For measuring surface finish (µm) to verify components meet specification

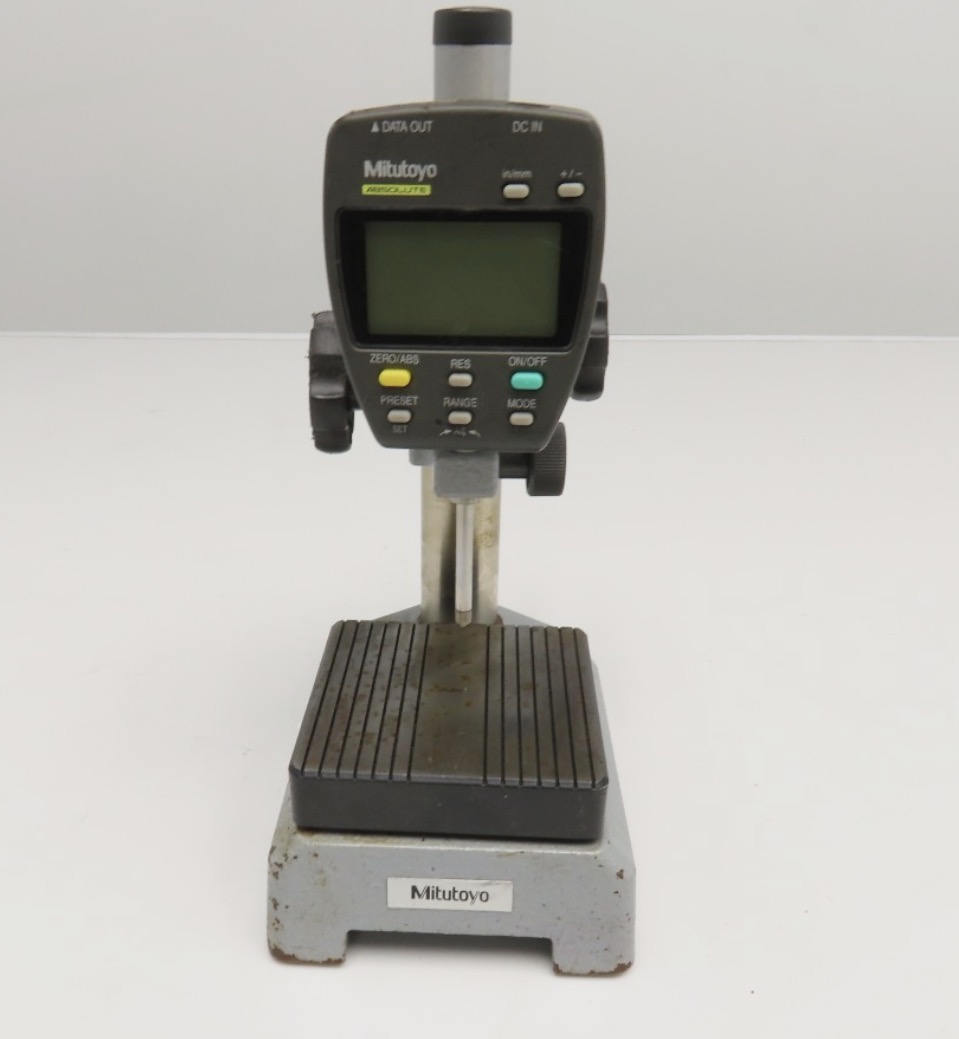

Mitutoyo Digital Comparator
For verifying and maintaining tight tolerances
